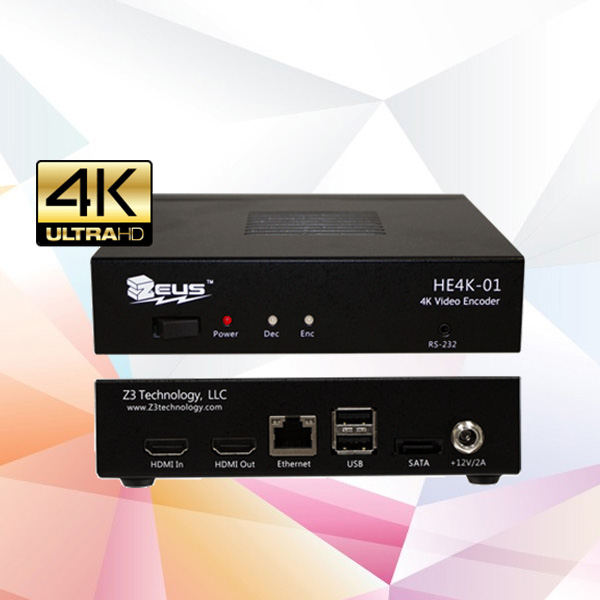

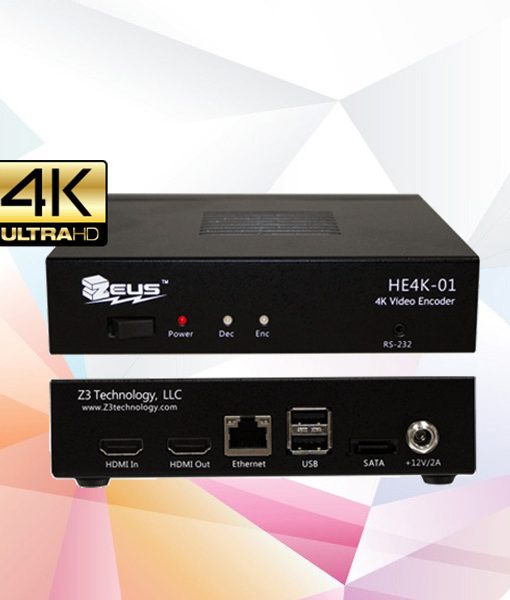

Z3TECH HE4K-01 H.264 4K UHD Encoder & Decoder

Encoder/Decoder: Support H.264, 2160p30, Input: HDMI ; Output: HDMI/GIgE The HE4K-01 is an H.264 encoder and decoder solution supporting HD resolutions up to 2160p at 30 frames per second (4K Ultra HD). This system offers 4K encoding and decoding capabilities while still consuming less power than a PC Based system. The HE4K-01 offers an optional feature of simultaneously streaming one source in 4K + 720p30. Its compact form factor makes is easily transportable for a variety of applications. The HE4K-01 is a network-enabled, cost-effective system that is the ideal 4K solution for industrial video, video distribution, digital signage, security and remote monitoring.

• Features

  • Simultaneously Stream One Source in 4K + 1080p30
  • Supports Sony VISCA Camera Control
  • Supports Unicast and Multicast
  • Custom Video Bitrate, GOP and VBV Size

• Specifications

  • INPUT
  • HDMI/DVI: 1 (4K)ADDITIONAL FEATURES
  • Encode Resolutions: Up to 4K Ultra HD Simultaneously Stream One Source in 4K + 720p30 (Optional)*
  • Encode Video Codecs: H.264
  • Encode Output Format: RTP, RTMP, MPEG-2 TS, TS File
  • Audio Interfaces: Embedded HDMI
  • Audio Codecs: AACDECODE
  • OUTPUT: HDMI/DVI: 1 (4K)ADDITIONAL FEATURES
  • Decode Resolutions: Up to 4K Ultra HD
  • Decode Video Codecs: H.264
  • Decode Input Format: RTP, RTSP, MPEG-2 TS, TS File
  • Decode Interfaces: Embedded HDMI
  • Audio Codecs: AACGeneral
  • Power: 12V
  • Weight: 608 g (1.34 lb)
  • Dimensions: 145 x 130 x 34 mm (5.71 x 5.12 x 1.34 in)
  • Typical Power Consumption: 15W
  • Operating Temperature and Humidity: 0 to 40 degrees C at 20-80% Relative Humidity
  • Storage Temperature and Humidity: -10 to 65 degrees C at 20-80% Relative Humidity
